Ultrasonic Cleaners: Medical Device Cleaning & Passivation
Esma E992.3T Triple Tumbler (Clean/Passivation)
**Automated cleaning and passivating by moving the fluids NOT the parts AND part rotation!**

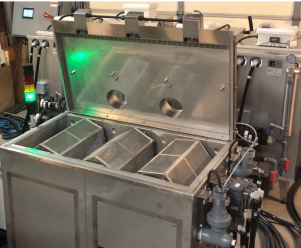

The Esma E992.3T Triple Tumbler is a variation of our standard model E992. For an explanation of the E992 process go here. The E992.3T unit is a self-contained, fully-automatic ultrasonic cleaner and/or passivation system. The model E922.3T adds 3 of the unique design tumbler baskets into the bath. Tumbler baskets will rotate slowly during the entire cycle with user input speed control per process step. Rotation of parts, especially parts with blind holes, cavities, threads, etc., will allow debris which is difficult to clean, to be drop off the parts further enhancing the ultrasonic cavitation cleaning effect. Furthermore, when used in a passivation process, the rototation will allow acid to penetrate hard to reach areas, assuring an effective passivation in all places. Operator interaction is managed through the touchscreen interface; including data collection for process steps and cycle parameters. This closed system minimizes operator exposure to acids and chemicals including a vented cover to eliminate chemical fumes. Process automation eliminates potential operator error or parts over exposure.Sold as a single process or a dual process system as shown.
Specifications:
- Cabinet Dimensions: 52"W x 30"L x 38"H
- Process Tank Dimensions: 44"W x 24"L x 12"D
- Tank Volume: 50 gallons
- Storage Tanks: 51"W x 20"L x 48"D each of (4)
- Ultrasonic Power: 2400 watts
- Hot Air Dryer: 9000 watts
- Construction: All stainless steel, RFI filtered
- Electrical: 120/208 3PH (Y)
